Case Study: Tackling Fly Ash Treatment for a Major Cement Plant
ZK SEPARATION LW580 X 2400B Decanter Centrifuge's Superior Performance in Cement Production Fly Ash Treatment
Project Background
During cement manufacturing, the generation of fly ash is a significant operational challenge. For a major cement producer, the high water content and fine particles in their fly ash slurry made traditional solid-liquid separation inefficient. The environmental company servicing this client turned to us for an advanced dewatering solution that could meet stringent environmental regulations while lowering disposal costs.
Customer Challenges
- High moisture content in fly ash (over 85%), difficult to handle and transport
- Fine particle size requiring high-efficiency separation technology
- Large processing volume demanding continuous, stable operation
- Strict environmental discharge standards for water quality
- Need to minimize operational and maintenance costs
- Limited space for equipment installation in existing facilities
ZK SEPARATION Solution
Based on the specific requirements of fly ash treatment in cement production, we recommended the LW580 X 2400B two-phase decanter centrifuge with thin oil lubrication system. This equipment is specifically designed for handling fine particles and high-volume continuous operation in industrial applications.
Equipment Technical Parameters
-
Bowl Specifications
Bowl diameter 580mm, length 2400mm, manufactured from high-grade stainless steel with corrosion-resistant coating for long-term durability
-
Speed and Separation
Operating speed 2600 RPM, separation factor 2296G, ensuring efficient solid-liquid separation for fine fly ash particles
-
Power Configuration
Main motor 75kW, auxiliary motor 22kW, providing sufficient power for continuous high-capacity operation
-
Processing Capacity
Design capacity 30-35m³/h, meeting current production demands with room for future expansion
-
Lubrication System
Equipped with thin oil lubrication system for enhanced reliability and reduced maintenance requirements
Project Overview
- Industry Cement Production
- Equipment Model LW580 X 2400B
- Processing Capacity 30-35m³/h
- Separation Factor 2196G
- Operating Speed 2600 RPM
- Total Weight 7550kg
Project Implementation and Results

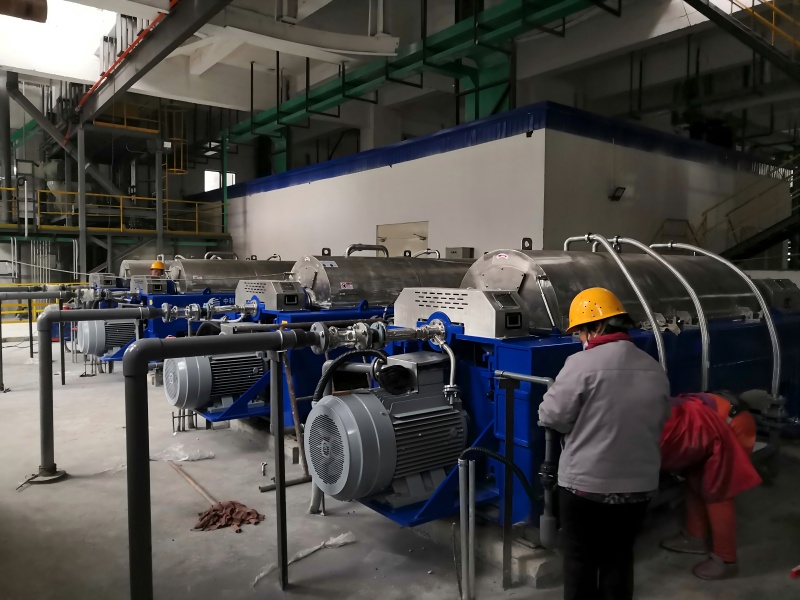

The ZK SEPARATION decanter centrifuge has been successfully integrated into the cement plant's fly ash treatment process, delivering exceptional performance and environmental benefits.
Treatment Results
- Moisture Reduction: Fly ash moisture content reduced from 85% to below 60%, volume reduction: 60%~70%
- Water Quality: Clarified water suitable for downstream polishing to meet discharge standards; suspended solids reduced to below 0.3%
- Processing Efficiency: Continuous operation at 32m³/h average capacity, exceeding design expectations
- Energy Efficiency: Optimized power consumption with 95% uptime since installation
- Economic Benefits: ROI achieved within 18 months through reduced disposal and transportation costs
Customer Testimonial
"From the start, the ZK SEPARATION decanter centrifuge exceeded our expectations for the fly ash treatment project. The machine runs continuously with minimal maintenance, and the dewatering results are excellent. We've been particularly impressed with the thin oil lubrication system, which has proven invaluable in our dusty environment. Ultimately, this solution helped us address environmental compliance requirements as part of the overall treatment process and generated significant cost savings by reducing our waste disposal volumes."
— Project Manager, Environmental Treatment Company
ZK SEPARATION Technical Advantages
Specialized Fly Ash Design
Our decanter centrifuge is specifically engineered for fly ash treatment, with optimized bowl geometry and screw design to handle fine particles effectively.
Thin Oil Lubrication System
Advanced thin oil lubrication system provides superior protection against wear in dusty environments, extending equipment life and reducing maintenance intervals.
Robust Construction
Heavy-duty construction with wear-resistant materials ensures reliable operation in demanding cement plant environments.
Intelligent Process Control
Sophisticated control system automatically adjusts operating parameters for optimal separation efficiency and consistent results.
Proven Track Record
Extensive experience in cement industry applications with numerous successful installations across different plant configurations.
Comprehensive Support
Complete technical support including installation guidance, operator training, and ongoing maintenance services.
