Silica Slurry Solid-Liquid Separation for Biotechnology Application
Explosion-Proof LWF350×1435A Decanter Centrifuge Delivers Safe and Efficient Separation for Silica Slurry Containing Volatile Solvents
Project Background
A biotechnology company produces silica gel and needs to separate silica slurry from a mixture containing ethanol, toluene, and acetone. The slurry has 10-15% solids with particle sizes ranging from 5 to 20 μm. Because these solvents are flammable, the plant requires explosion-proof equipment. The separation runs at 25°C, and the goal is efficient solid-liquid separation without safety risks.
Customer Challenges
- Presence of flammable solvents (ethanol, toluene, acetone) requiring explosion-proof equipment design to meet safety regulations
- Fine particle size (5-20 μm) and moderate solid content (10-15%) requiring effective separation performance
- Need for reliable continuous operation to maintain production flow without safety incidents
- Requirement for clear separation between solid silica and liquid phase containing organic solvents
- Operating temperature at 25°C requiring equipment performance stability at ambient conditions
- Space constraints and installation requirements for explosion-proof rated equipment
Our Solution

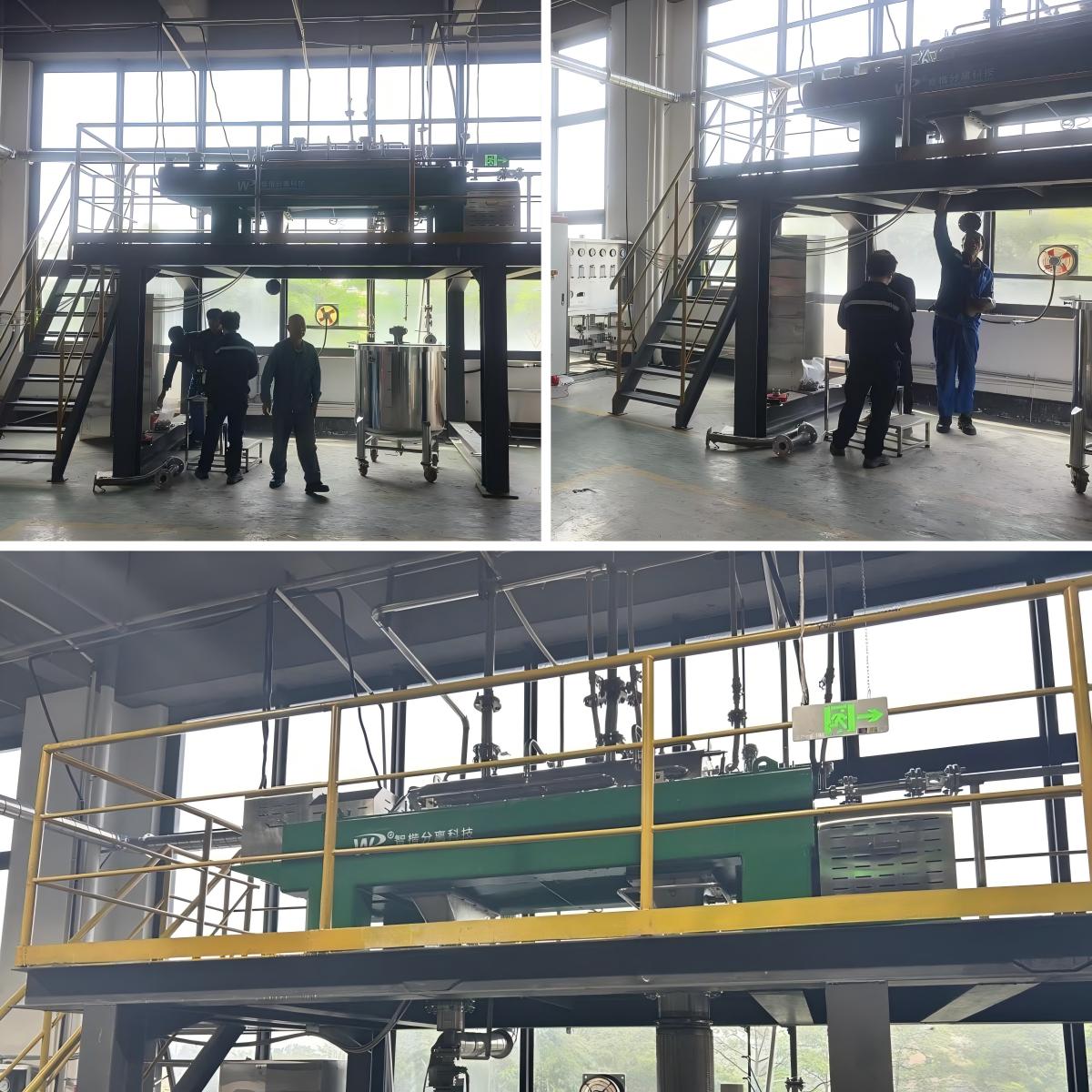

We supplied the LWF350×1435A explosion-proof decanter centrifuge for this application. The unit meets explosion-proof standards for electrical and mechanical components, allowing safe operation with flammable solvents. It handles the fine silica particles and maintains separation performance under these conditions.
Equipment Technical Parameters
-
Model
LWF350×1435A explosion-proof decanter centrifuge
-
Explosion-Proof Configuration
All electrical components and motors meet explosion-proof standards for operation in hazardous environments with flammable vapors
-
Physical Dimensions
Overall dimensions: 3935×920×1300 mm (length×width×height)
-
Equipment Weight
Total weight: 3000 kg
-
Material Compatibility
Wetted parts constructed with materials compatible with ethanol, toluene, and acetone
-
Operating Conditions
Designed for operation at 25°C ambient temperature with feed containing 10-15% solids
Project Overview
- Customer Industry Biotechnology (Silica)
- Application Silica Slurry Separation
- Equipment Model LWF350×1435A
- Equipment Type Explosion-Proof
- Feed Solid Content 10-15%
- Particle Size 5-20 μm
- Process Temperature 25°C
Separation Performance
The centrifuge has run reliably since startup, handling the silica slurry safely. Separation performance is stable, with clear liquid discharge and consistent solid cake. The explosion-proof design keeps operation safe with the volatile solvents present.
Operational Performance Metrics
- Separation Results: The centrifuge separates silica from the liquid phase containing solvents. Liquid discharge is clear, and solid cake forms consistently.
- Safety: Explosion-proof design allows safe operation with flammable vapors from ethanol, toluene, and acetone, meeting requirements for hazardous areas.
- Operation: The unit runs steadily at 25°C, handling the 10-15% solid feed without interruptions.
- Particle Capture: The design handles fine particles (5-20 μm) well, capturing silica solids effectively.
- Liquid Quality: Separated liquid is clear and suitable for solvent recovery or further processing.
- Solid Discharge: Cake discharge is consistent, making downstream handling easier and reducing moisture in the separated silica.
Customer Feedback
"The explosion-proof centrifuge meets our needs. It handles the silica slurry well, and separation is consistent. The explosion-proof design lets us operate safely with the solvents. Installation went smoothly, and it's been running without problems since startup."
— Production Manager, Biotechnology Company
Why This Solution Works
Explosion-Proof Design
Electrical components, motors, and controls meet explosion-proof standards for safe operation with flammable vapors from ethanol, toluene, and acetone.
Fine Particle Handling
The centrifuge handles fine silica particles (5-20 μm) well, achieving good separation with the 10-15% solid feed.
Material Selection
Wetted parts use materials compatible with the organic solvents, preventing corrosion and supporting long-term reliability.
Steady Operation
The unit runs consistently at 25°C, delivering reliable separation results during production runs.
Safety Standards
Explosion-proof configuration meets regulatory requirements for hazardous areas, allowing safe processing of materials with volatile solvents.
Installation
Compact design and standard installation make it straightforward to integrate into existing production lines within available space.
Project Value
This project shows how explosion-proof decanter centrifuges handle solid-liquid separation in biotechnology applications with volatile solvents. The solution delivers safe, efficient separation while meeting safety requirements.
Key Benefits
- Safe operation in hazardous environments through explosion-proof equipment design meeting regulatory standards
- Effective separation of fine silica particles from liquid phase containing organic solvents
- Stable performance at ambient operating temperature (25°C) ensuring consistent process results
- Clear separation between solid and liquid phases facilitating downstream processing
- Reliable continuous operation supporting production flow without safety incidents
- Material compatibility with ethanol, toluene, and acetone ensuring long-term equipment reliability
