Optimizing Municipal Water Treatment with Advanced Sludge Dewatering
Dual LW450x1845B Decanter Centrifuges Deliver Reliable Performance for Environmental Technology Company's Water Purification Facility
Project Background
An environmental technology company runs a water treatment plant serving residential and commercial areas. Their existing sludge dewatering equipment wasn't keeping up with operational demands, and they needed a solution that could handle varying flow conditions while meeting discharge requirements.
Key Issues
- Existing dewatering equipment produced inconsistent results, especially during peak flows
- Wet sludge cake meant higher disposal costs and more frequent truck hauls
- Limited capacity during storm events when flow rates increased significantly
- Equipment downtime for repairs was affecting daily operations
- Rising energy costs were impacting the facility's operating budget
- Need for backup capacity to maintain continuous operation
Our Solution

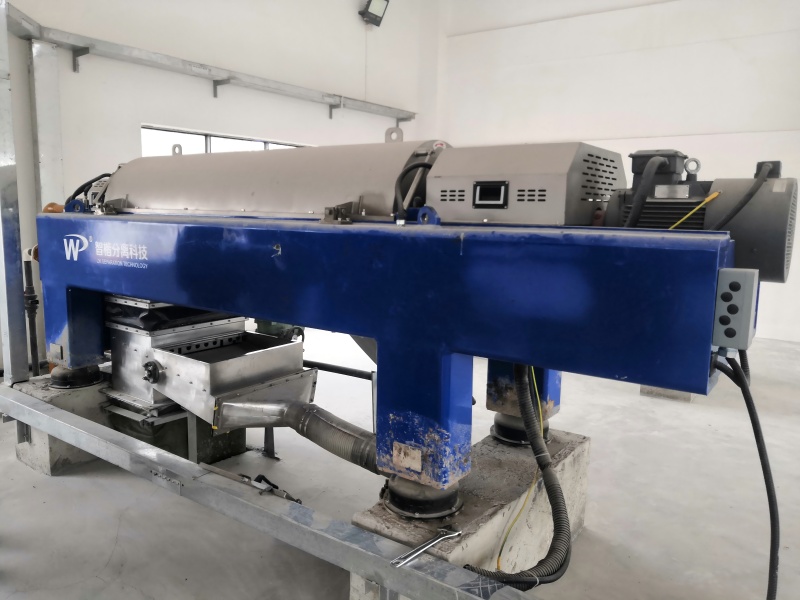

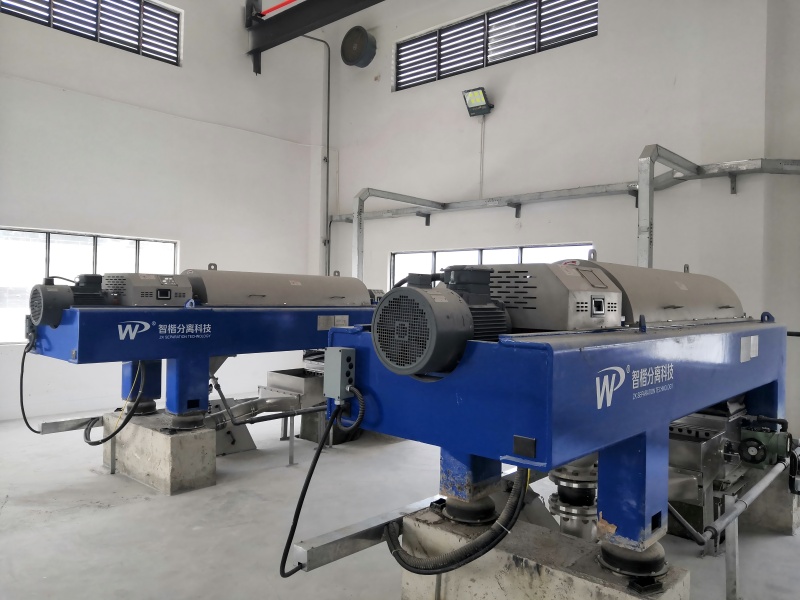

Following a site visit and review of their operational data, we recommended installing two LW450x1845B decanter centrifuges. The dual-unit setup gives them the backup capacity they needed while allowing one unit to handle normal flows during maintenance of the other.
Equipment Technical Specifications
-
Bowl Configuration
Bowl diameter: 450mm, Length: 1845mm. Manufactured from duplex stainless steel with enhanced corrosion resistance for municipal wastewater applications
-
Operational Parameters
Design speed: 3200 RPM generating centrifugal force of 2580G, engineered for effective solid-liquid separation in municipal sludge applications
-
Drive System
Main motor: 35kW with variable frequency drive, Auxiliary motor: 7.5kW for differential speed control, ensuring optimal torque and separation efficiency
-
Processing Capacity
Design capacity range: 10-40m³/h per unit, providing operational flexibility for varying flow conditions and redundancy for continuous operation
Project Overview
- Customer Industry Environmental Technology
- Equipment Model 2 × LW450x1845B
- Actual Capacity 17m³/h per unit
- Maximum G-Force 2580G
- Operating Speed 3200 RPM
- Total Installed Power 85kW (2 units)
Treatment Performance
Since commissioning the centrifuges, the plant has been able to maintain consistent sludge processing even during peak flows. Each unit processes about 17m³/h, which works well for their current needs while leaving room for higher flows when needed.
Operational Performance Metrics
- Processing Throughput: Stable operation at 17m³/h per unit, well within the 10-40m³/h design range, providing operational flexibility for varying flow conditions
- Solids Capture Efficiency: Achieving 92-95% solids capture rate, effectively reducing suspended solids in the centrate discharge
- Cake Dryness: Dewatered sludge typically contains 20-24% dry solids, significantly reducing disposal volume and transport costs
- Energy Consumption: Specific energy consumption of 3.2-3.8 kWh/m³, within expected range for this equipment class
- Operational Reliability: Maintaining 95% uptime with scheduled maintenance intervals, ensuring consistent treatment performance
- Centrate Quality: Centrate suspended solids typically below 200mg/L, compatible with return to treatment process headworks
Customer Feedback
"The LW450x1845B units have delivered solid performance since installation. The equipment handles our typical sludge characteristics well, and the dual configuration gives us the redundancy we need for continuous operation. While there was a learning curve during startup, the equipment now operates consistently within our process parameters. The cake dryness has improved our sludge handling logistics compared to our previous setup."
— Operations Supervisor, Water Treatment Facility
Why This Equipment Works
Built for Municipal Use
The LW450x1845B is designed to handle the corrosive nature of municipal sludge. The materials and protective coatings help extend equipment life in this demanding environment.
Adjustable Operation
Variable speed drives let operators adjust the centrifuge to match changing sludge conditions throughout the day or season, getting better separation when needed.
Reasonable Energy Use
The motor sizing and bowl design aim for efficient operation without over-engineering. Energy consumption stays within typical ranges for this type of equipment.
Support When Needed
We provide installation support, basic operator training, and maintenance guidance. Our service team can assist with troubleshooting and parts when needed.
Meeting Standards
The equipment helps facilities meet their discharge requirements while producing drier sludge that's easier and less expensive to dispose of properly.
