Enhancing Municipal Wastewater Treatment Performance
LW450x1845E Decanter Centrifuge Delivers Consistent Results for Environmental Technology Company's Water Treatment Operations
Project Background
This environmental technology company runs a municipal wastewater treatment plant that handles sewage from several residential neighborhoods and a small commercial district. Their existing dewatering equipment was struggling to keep up with growth in the area, and they needed something more reliable to meet discharge requirements.
Operational Challenges
- Existing equipment struggled with varying sludge characteristics during different seasons and weather conditions
- Insufficient processing capacity during peak flow periods, particularly after heavy rainfall
- High moisture content in discharged sludge cake led to increased disposal costs and transportation frequency
- Equipment maintenance downtime disrupted continuous treatment operations
- Rising operational costs due to energy consumption and chemical dosing requirements
- Need for reliable performance to meet environmental discharge regulations consistently
Engineered Solution
After visiting the site and looking at their sludge samples, our team suggested the LW450x1845E with a built-in polymer dosing setup. This model seemed like a good fit for their sludge type and the space they had available in their existing building.
Engineering Design Features
-
Materials & Corrosion Protection
Bowl and conveyor constructed from duplex stainless steel 2205 with tungsten carbide hardfacing on wear surfaces. Special H2S-resistant coating applied to internal surfaces to handle municipal sludge's corrosive components
-
Differential Speed Control
Planetary gearbox with torque-limiting protection allows operators to adjust differential speed from 3-25 RPM during operation, optimizing cake dryness vs. solids capture based on real-time sludge conditions
-
Automation & Control Systems
PLC-based control panel with HMI touchscreen interface, automated startup/shutdown sequences, vibration monitoring, and remote diagnostics capability for predictive maintenance
-
Installation Configuration

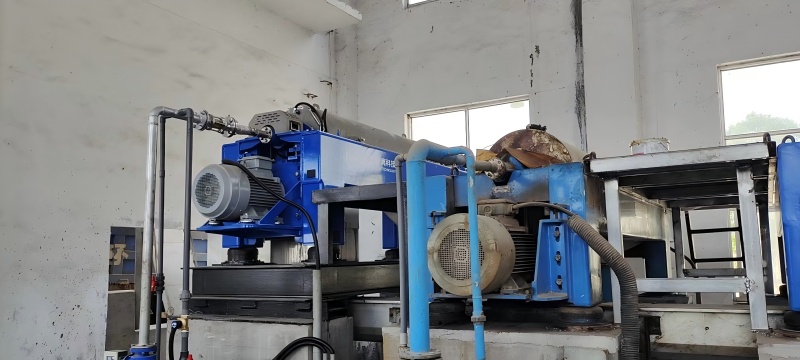

Compact skid-mounted design fit within existing building footprint without structural modifications. Sound enclosure reduces operational noise to <75dB, meeting municipal facility requirements
-
Polymer Dosing Engineering
Variable-speed peristaltic pumps with flowmeter feedback ensure accurate dosing rates of 2-8 kg/ton dry solids. Mixing chamber with static mixers provides 15-second retention time for optimal flocculation
Project Overview
- Customer Type Environmental Technology Company
- Application Municipal Wastewater
- Equipment Model LW450x1845E
- Actual Throughput 18m³/h
- Maximum G-Force 2580G
- Operating Speed 3200 RPM
- Total Power 42.5kW
- Chemical Dosing Integrated System
Performance Results
The centrifuge has been running for about 14 months now and typically processes around 18m³/h during normal operations. The plant manager mentioned they're getting better cake dryness than their old equipment, which means fewer truck hauls for sludge disposal.
Measured Performance Indicators
- Processing Capacity: Consistent operation at 18m³/h, well within the equipment design range, providing reliable performance for daily treatment requirements
- Solids Recovery Rate: Achieving 93-95% solids capture efficiency, effectively reducing suspended solids in the centrate return stream
- Cake Dry Solids Content: Dewatered sludge consistently achieves 22-26% dry solids, reducing disposal volume by approximately 35% compared to previous equipment
- Energy Efficiency: Specific energy consumption of 3.6-4.2 kWh/m³, within expected range for municipal sludge dewatering applications
- System Availability: Operating at 94% uptime over the first year, including initial commissioning adjustments and routine maintenance schedules
- Centrate Quality: Centrate suspended solids typically below 150mg/L, meeting internal standards for return to treatment process headworks
- Chemical Optimization: Polymer consumption reduced by 15% compared to previous system through improved mixing and dosing control
Customer Feedback
"The LW450x1845E has been a solid addition to our treatment process. While we did experience some initial adjustment challenges during the first few weeks of operation, the equipment now handles our typical sludge characteristics reliably. The cake dryness improvement has been noticeable, reducing our hauling frequency from daily to every other day. The polymer dosing system took some fine-tuning, but we're now using about 15% less chemicals than before. Our operators find the controls intuitive once they got familiar with the system."
— Plant Operations Manager, Municipal Water Treatment Facility
Equipment Performance Factors
Built for Municipal Plants
This model uses stainless steel construction and protective coatings to handle the corrosive nature of municipal sludge. The materials hold up well in this type of environment based on what we've seen at other installations.
Variable Operating Conditions
Variable frequency drives enable operators to adjust centrifuge parameters in response to changing sludge characteristics throughout operational cycles, optimizing separation performance as conditions vary.
Energy Management
Motor sizing and control systems are configured to balance separation performance with energy consumption, maintaining operational efficiency within typical industry ranges for municipal applications.
Integrated Chemical System
The polymer dosing system provides automated chemical addition with flow-proportional control, reducing manual intervention while optimizing chemical consumption for varying sludge conditions.
Getting Started Support
We helped with installation and spent a few days training their operators on the controls. Our service team checks in periodically and can help with troubleshooting if they run into issues.
Environmental Compliance
Equipment improves overall plant efficiency by producing drier sludge cake that reduces disposal costs and transportation requirements, while the clarified centrate is returned to the treatment process for further processing.
Project Value Summary
Installing the LW450x1845E has worked out well for this plant. They're seeing better results in several areas: more consistent operation, drier sludge cake, and lower chemical costs. The plant manager says it's been a worthwhile investment so far.
