Municipal Water Plant Sludge Dewatering Success Case
LW450x1845C Decanter Centrifuge Delivers Efficient Solution for Municipal Water Treatment Sludge Processing
Project Background
This municipal water treatment plant handles wastewater for over 200,000 residents. Like many facilities built in the 1990s, their original sludge handling equipment couldn't keep up with increased loads. The belt filter press was breaking down frequently, and sludge disposal costs were climbing fast—primarily due to the high water content making trucks heavier and more expensive to haul.
Customer Challenges
- Sludge was coming off the thickener at 98% moisture—basically liquid mud that's expensive to haul
- The old belt press needed constant attention and parts, plus it couldn't handle peak flows
- Disposal costs had doubled in three years due to weight charges and new landfill restrictions
- Equipment downtime meant sludge backup, which the plant couldn't afford during peak season
- New regulations required consistent cake quality—something the belt press couldn't deliver
ZK SEPARATION Solution

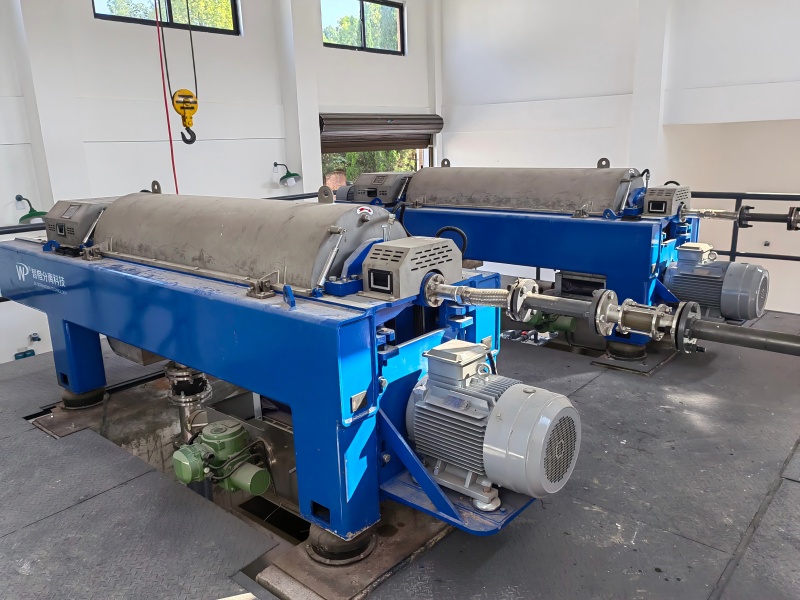

We looked at their sludge samples and plant layout. The LW450x1845C was a good fit—it's built for municipal plants and can handle the variations in sludge quality that come with seasonal changes and weather events. Plus, it fits in their existing building without major modifications.
Technical Design & Process Configuration
-
Material Engineering
We use 316L stainless throughout—it handles the corrosive stuff in municipal sludge without pitting. The screw conveyor has a hard coating that stands up to grit and sand that comes through the plant
-
Process Flow Integration
The feed system has adjustable baffles so operators can dial in the right flow pattern. Polymer injection point is positioned where it works best—upstream enough for good mixing but not so far that the floc breaks up
-
Control & Monitoring System
The control panel shows operators what they need to know—torque, vibration levels, and differential speed. It ties into their existing SCADA system, so maintenance staff can monitor it remotely and catch problems early
-
Safety & Maintenance Features
Safety covers and interlocks keep operators safe. When it's time for maintenance, the bearing housings come apart easily—no need to pull the whole rotor. Built-in wash system cleans it between different sludge types
Project Overview
- Application Municipal Water Treatment
- Equipment Model LW450x1845C
- Actual Capacity 18m³/h
- Design Capacity 10-40m³/h
- Centrifugal Force 2580G
- Operating Speed 3200 RPM
- Main Motor 30kW
- Auxiliary Motor 7.5kW
Project Implementation and Results
The centrifuge has been running for eight months now. It's made a real difference—the operators like how consistent it is, and the plant manager is happy with the cost savings.
Performance Achievement

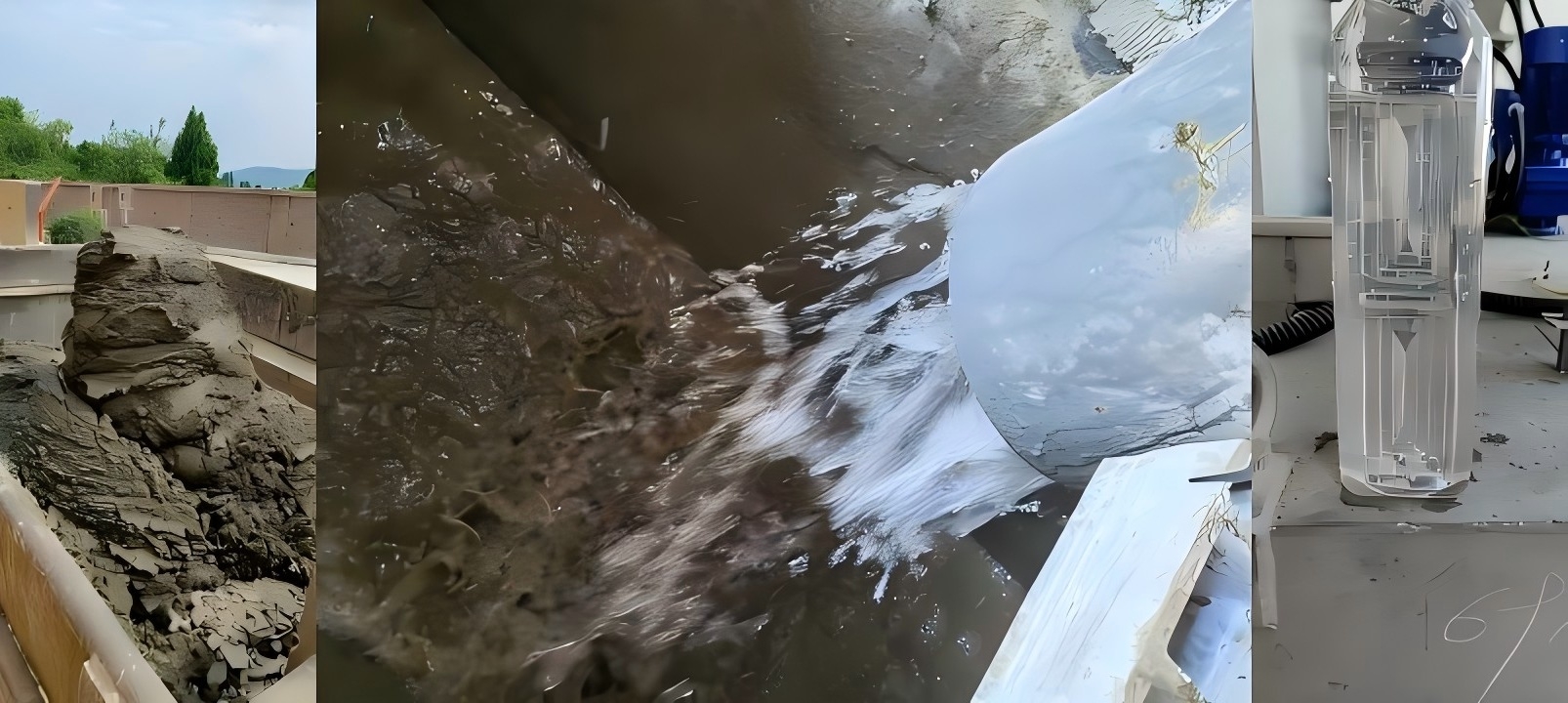

- Sludge Volume: Cut disposal volume by 85%—sludge cake comes out at 75-80% moisture instead of 98%
- Throughput: Steady 18m³/h with minimal babysitting—operators check it twice per shift
- Centrate Quality: Clear enough to send back to the headworks, no water loss
- Reliability: Running 24/7 with maintenance every 2000 hours as scheduled
- Cost Impact: Disposal costs dropped 40% in the first year
- Regulatory: Cake quality is consistent enough that they're looking at beneficial reuse options
Customer Testimonial
"This centrifuge has been a game-changer for us. Our old belt press was a constant headache—always something breaking or needing adjustment. This thing just runs. We're saving about $120,000 a year on disposal costs alone, and the maintenance is minimal. ZK's tech support was solid during startup, and they still answer the phone when we have questions."
— Plant Operations Manager, Municipal Water Treatment Facility
ZK SEPARATION Technical Advantages
Municipal-Grade Engineering
The LW450x1845C incorporates robust engineering principles specifically designed for municipal applications, featuring heavy-duty construction and corrosion-resistant materials for long-term reliability.
Advanced Separation Technology
Optimized bowl geometry and screw conveyor design maximize residence time and separation efficiency, delivering superior dewatering performance for municipal sludge characteristics.
Process Integration Capability
Flexible design allows seamless integration with existing plant infrastructure, including polymer dosing systems and process control networks.
Energy-Efficient Operation
Optimized power consumption profile and variable speed control capabilities minimize operating costs while maintaining consistent performance.
Proven Municipal Experience
Extensive track record in municipal water treatment applications worldwide, with installations serving communities ranging from 50,000 to over 1 million residents.
Comprehensive Support Package
Complete project lifecycle support including design consultation, installation supervision, operator training, and ongoing technical assistance with 24/7 availability.
