Water Treatment Plant Sedimentation Tank Sludge Dewatering
LW350x1435C Dewatering Centrifuge Maintains Stable Performance Despite Variable Feed Solids Concentration
Project Background
A municipal water supply and drainage company operates a water treatment plant processing raw water for municipal supply. The sedimentation tanks produce sludge that needs dewatering before disposal. The main challenge is that feed solids concentration varies significantly—raw water quality changes with seasons and weather, and treatment plant operations fluctuate. This variability makes it tough to keep dewatering performance consistent.
Customer Challenges
- Feed solids concentration fluctuates widely, making it difficult to maintain consistent dewatering performance
- Existing equipment struggled to handle variable feed conditions, requiring frequent operator adjustments
- Need for reliable, continuous operation to match water treatment plant production schedules
- Space constraints at the facility require compact equipment configuration
- Requirement for automated operation to minimize operator intervention
- Cost control for polymer consumption while achieving acceptable cake dryness
Our Solution
We reviewed the sedimentation tank sludge samples and plant layout. The LW350x1435C two-phase dewatering centrifuge was selected because it handles variable feed conditions well while keeping throughput stable. A separate polymer preparation and dosing system was supplied for automated flocculation control.
System Components
-

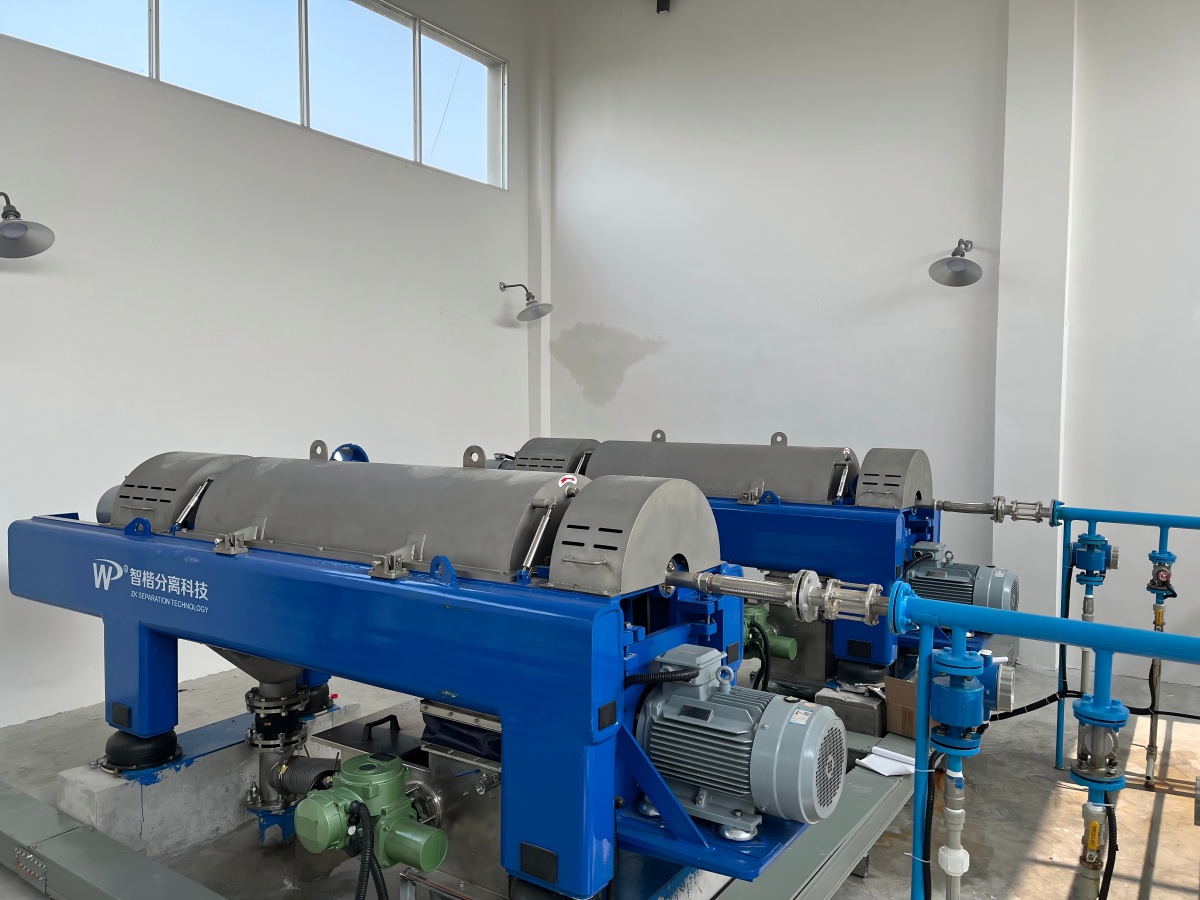

Dewatering Centrifuge
LW350x1435C two-phase dewatering centrifuge with 350mm bowl diameter and 1435mm length. The design handles variable feed solids concentration effectively, maintaining stable throughput even when feed conditions change. Overall dimensions: 3750×1040×1350mm, total weight: 2760kg.
-

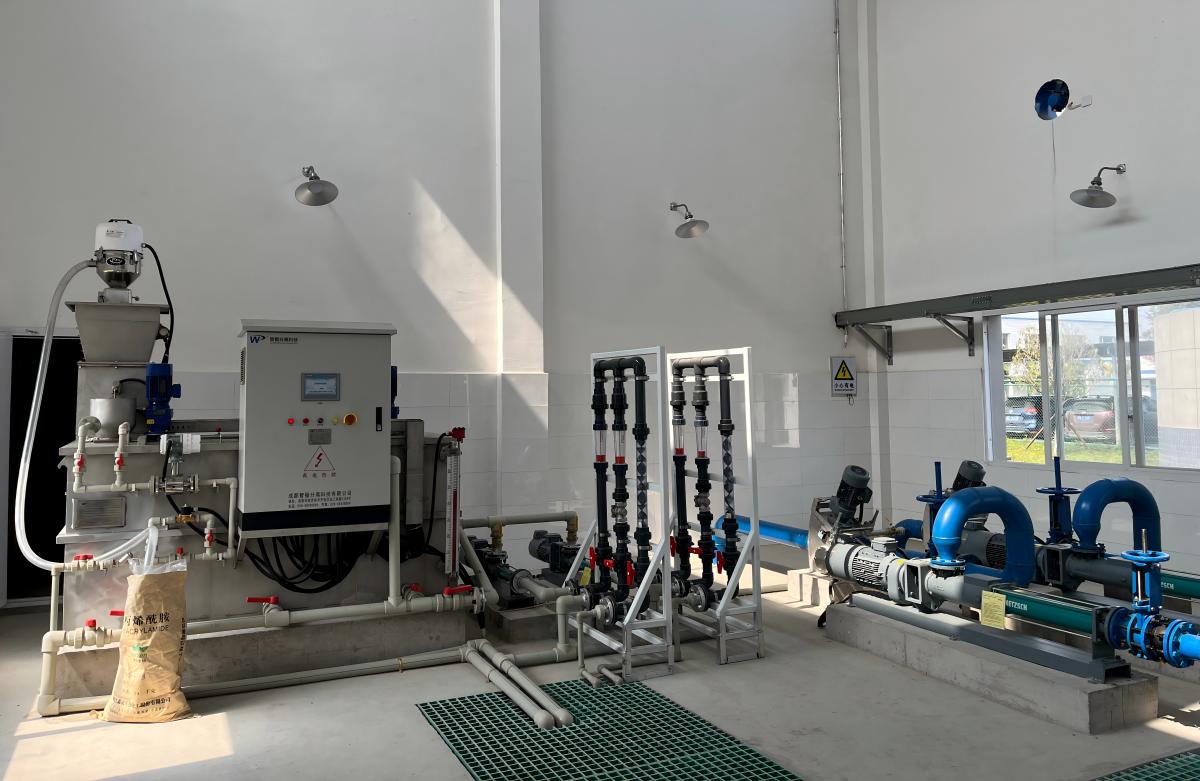

Polymer Preparation and Dosing System
Separate automatic polymer preparation and dosing system. The unit prepares polymer solution automatically and maintains precise dosing control. PAM dosing rate is set at 0.20 L/h per m³/h feed, optimized for sedimentation tank sludge characteristics.
-
Feed System
Feed pump system designed to handle variable flow rates and solids concentration. The system maintains steady feed to the centrifuge regardless of upstream variations.
-
Control System
Automated control system monitors centrifuge operation parameters and adjusts settings as needed. Operators can monitor performance and make adjustments through the control panel.
Project Overview
- Customer Industry Municipal Water Supply
- Application Sedimentation Tank Sludge Dewatering
- Equipment Model LW350x1435C
- Actual Capacity 8-15 m³/h
- Design Capacity 4-15 m³/h
- Equipment Dimensions 3750×1040×1350mm
- Total Weight 2760kg
- PAM Dosing Rate 0.20 L/h per m³/h feed
- Operating Hours 3200+ hours
Treatment Performance
The dewatering centrifuge has been running reliably since startup. Even with significant variations in feed solids concentration, throughput stays stable at 8-15 m³/h, well within the 4-15 m³/h design range. The unit has logged over 3200 hours of operation with consistent performance.
Operational Performance Metrics
- Processing Throughput: System maintains stable throughput at 8-15 m³/h despite variable feed solids concentration. This performance demonstrates the centrifuge's ability to handle feed variations common in water treatment operations.
- Feed Variability Handling: The equipment maintains consistent performance even when feed solids concentration varies significantly, reducing the need for frequent operator adjustments.
- Polymer Consumption: PAM dosing rate maintained at 0.20 L/h per m³/h feed, optimized for sedimentation tank sludge characteristics. The automatic dosing system keeps flocculation consistent.
- System Reliability: Equipment has accumulated over 3200 hours of operation with consistent performance. Maintenance requirements have been minimal, demonstrating robust design for water treatment applications.

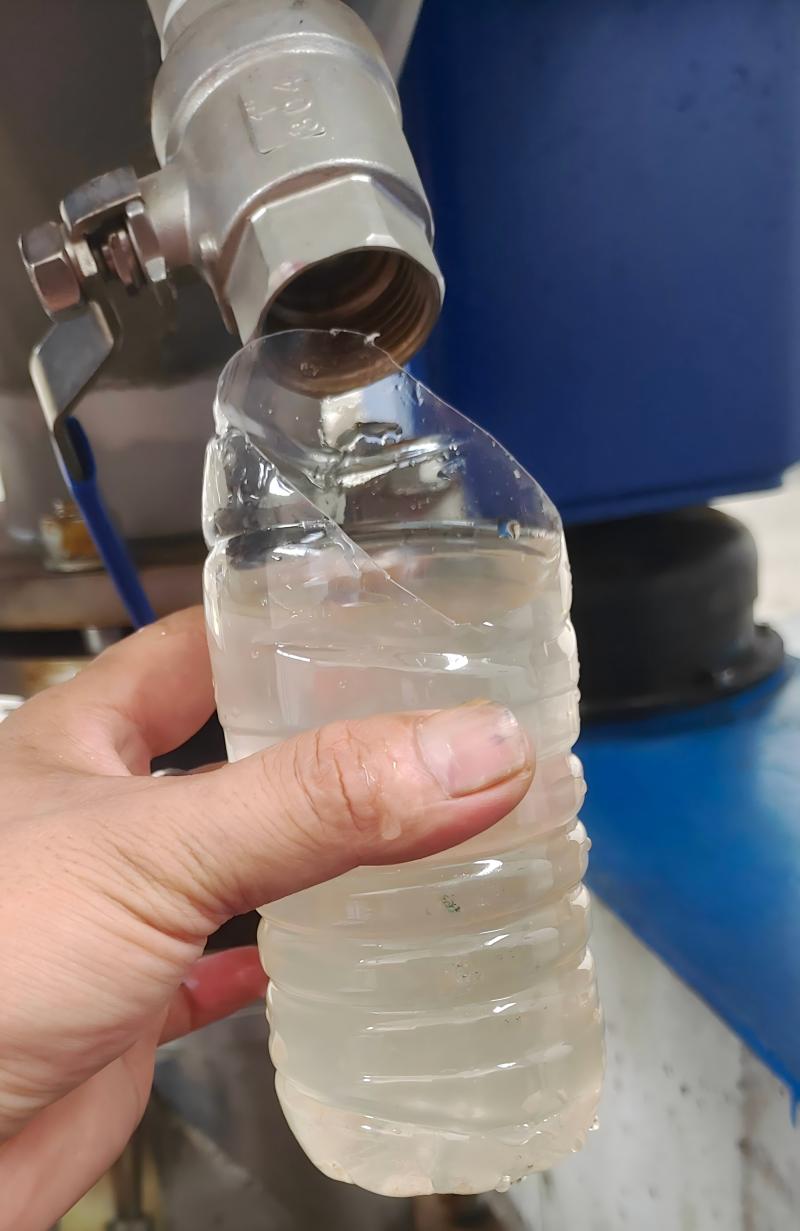

- Liquid Phase Quality: Clarified liquid phase meets discharge requirements, suitable for return to treatment process or discharge per local regulations.
- Operational Stability: The system operates continuously with minimal supervision, fitting well into water treatment plant operations where consistent, reliable performance is essential.
Customer Feedback
"The dewatering centrifuge has worked well for our sedimentation tank sludge. What stands out is how it handles the variable feed conditions. Our feed solids concentration changes a lot depending on raw water quality and season, but the centrifuge keeps throughput stable without us constantly adjusting it. It's been running reliably for over 3200 hours, and maintenance has been straightforward. The polymer dosing system works well, and the whole setup fits our operations."
— Operations Manager, Municipal Water Supply Company
Why This Solution Works
Variable Feed Handling
The LW350x1435C design handles variable feed solids concentration effectively. The bowl geometry and screw conveyor configuration allow the centrifuge to maintain stable throughput even when feed conditions change significantly.
Compact Design
With dimensions of 3750×1040×1350mm and total weight of 2760kg, the equipment fits well in water treatment plant layouts where space is often limited. The compact footprint makes installation straightforward.
Automated Operation
The separate polymer preparation and dosing system automates flocculation control, reducing operator intervention. The control system monitors operation parameters and maintains consistent performance.
Proven Water Treatment Application
The LW350x1435C is designed for water treatment applications, with materials and construction suitable for sedimentation tank sludge characteristics. The design has proven reliable in similar municipal water treatment installations.
Stable Performance Range
The design capacity range of 4-15 m³/h provides flexibility for varying plant loads. Current operation at 8-15 m³/h demonstrates the equipment's ability to handle higher throughput while maintaining separation quality.
Reliable Long-Term Operation
With over 3200 hours of operation, the equipment has demonstrated reliability for continuous water treatment plant operations. Maintenance requirements have been minimal, supporting cost-effective operation.
Project Value
This project shows how dewatering centrifuge technology handles variable feed conditions in water treatment plant sludge dewatering. The solution delivers reliable, automated operation while keeping performance consistent even when feed conditions change.
Key Benefits
- Stable throughput maintained at 8-15 m³/h despite variable feed solids concentration
- Automated operation reduces operator intervention and supports continuous plant operations
- Compact design fits well in water treatment plant layouts with space constraints
- Reliable long-term performance demonstrated through 3200+ hours of operation
- Separate polymer dosing system optimizes flocculation while controlling chemical consumption
- Consistent separation performance supports efficient sludge handling and disposal
