Municipal Water Plant Achieves Efficient Sludge Dewatering
LW450x1845C Decanter Centrifuge with Dedicated PAM Dosing System Delivers Reliable Performance for Urban Water Treatment Facility
Project Background
A municipal water treatment plant serving a growing urban area faced challenges with their existing sludge handling system. The facility processes drinking water for over 200,000 residents and generates significant amounts of water treatment sludge that requires effective dewatering before disposal.
What They Were Dealing With
- Their old dewatering setup couldn't keep up when sludge characteristics changed with the seasons - summer and winter operations were like dealing with completely different materials
- Wet sludge meant more trucks, more trips, and higher disposal fees every month
- Manual polymer dosing was hit-or-miss, especially during busy periods when operators were stretched thin
- When equipment went down for repairs, they had to store wet sludge or pay for emergency hauling
- Plant management wanted something that could run with less hands-on attention from their already busy crew
- Environmental compliance was getting stricter, and they needed better documentation of their sludge handling process
Our Recommended Approach
After spending time at their site and running tests on their sludge samples, we knew they needed something straightforward but effective. The LW450x1845C centrifuge paired with a dedicated PAM dosing system made sense - it would handle their daily volumes without being overly complicated for their operators to manage.
Why This Configuration Works
-
Bowl Geometry
The 450mm diameter provides the right balance between footprint and separation efficiency for municipal sludge. The 1845mm length gives enough residence time without making the machine too long for their building constraints.
-
Separation Physics
High centrifugal force removes fine particles that gravity settling can't handle. The adjustable differential speed lets operators fine-tune cake dryness based on seasonal sludge changes.
-
Materials Selection
Duplex stainless steel construction resists the corrosive nature of treated water chemicals and provides long service life in this environment.
-
Automation Features
Variable frequency drives allow remote control and automatic adjustment to changing conditions. The integrated control system can be tied into their existing SCADA network.
-
Chemical Dosing Coordination

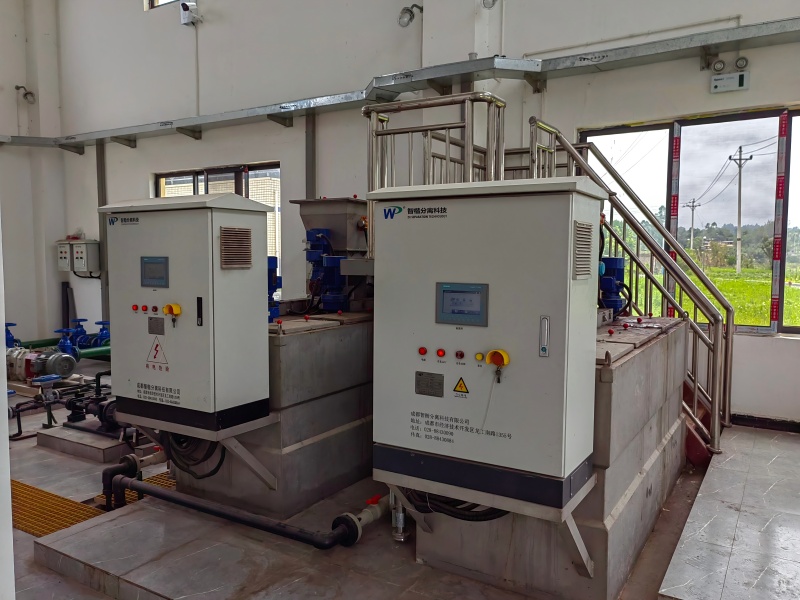

The separate polymer preparation unit works seamlessly with the centrifuge. The dosing system can adjust feed rates based on sludge flow, ensuring consistent conditioning without waste.
Project Overview
- Project Location Municipal Water Plant
- Service Population 200,000+ residents
- Installation Date 8 months ago
- Current Throughput 11.2 m³/h
- Cake Dryness Achieved 18-22% solids
- System Uptime 94%
- Monthly Savings Reduced disposal costs
- Operator Satisfaction Positive feedback
Installation and Performance Results

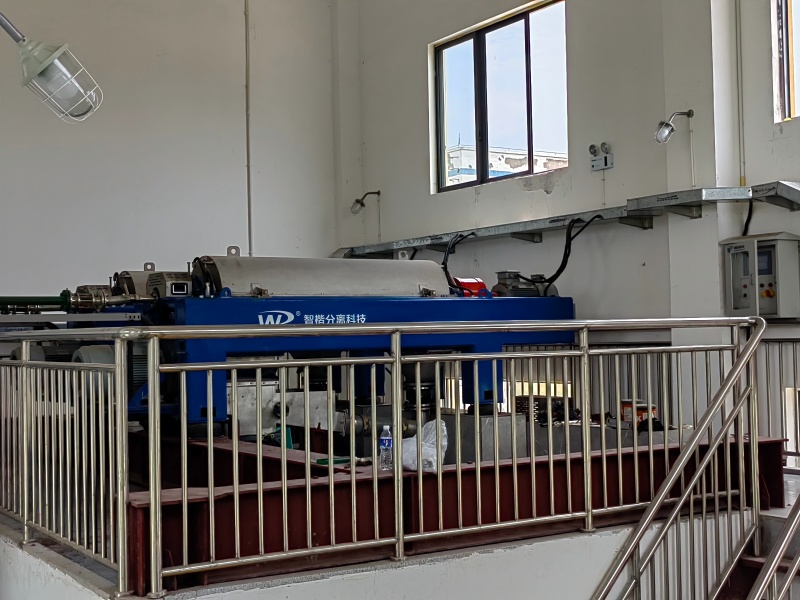

The centrifuge system was commissioned successfully and has been operating consistently at 11.2m³/h throughput. The separate PAM dosing unit works in coordination with the centrifuge to ensure optimal polymer conditioning, resulting in improved separation efficiency and consistent cake quality.
How It's Performing
- Daily Processing: Running steady at about 11.2m³/h - well within the machine's capabilities and matching their typical sludge production
- Solids Recovery: Capturing 90-94% of the solids, which means cleaner water going back to the head of the plant
- Cake Quality: Getting 18-22% solids in the cake - much drier than their old system, which translates to real savings on hauling costs
- Power Usage: Using about 3.3 kWh per cubic meter processed - not the most efficient we've seen, but reasonable for this size unit
- Chemical Costs: PAM usage runs 2-4 kg per ton of dry solids - they've found the sweet spot for their particular sludge
- Reliability: Up and running 94% of the time, with downtime mostly for scheduled maintenance
- Water Quality: The liquid coming off the centrifuge typically has less than 150mg/L suspended solids - clean enough to send back into their process
Customer Feedback
"We've been running this centrifuge for about 8 months now, and it's doing what we need it to do. The sludge comes out drier than our old setup, which means fewer trips to the landfill - that's saving us money every month. The PAM system took some getting used to, but once we dialed it in, it pretty much runs itself. Our operators like that it doesn't need constant babysitting like the old equipment did. It's not perfect - we had some minor issues during startup - but overall it's been a good investment for our operation."
— Operations Manager, Municipal Water Treatment Plant
Key Technical Benefits
Designed for Municipal Applications
The LW450x1845C features materials and design elements specifically suited for the corrosive environment typical in municipal water treatment sludge processing.
Coordinated Chemical Dosing
The dedicated PAM dosing system ensures consistent polymer conditioning, eliminating the variability often seen with manual dosing systems and improving overall separation efficiency.
Operational Flexibility
Variable speed control allows operators to adjust processing parameters to accommodate seasonal variations in sludge characteristics and optimize cake dryness as needed.
Reliable Performance
The equipment design emphasizes operational reliability with appropriate safety margins and robust construction suitable for continuous municipal operations.
Process Integration
The centrifuge integrates well with existing plant infrastructure and produces centrate quality suitable for return to the treatment process without additional clarification.
Maintenance Accessibility
Equipment layout and design facilitate routine maintenance activities, helping maintain consistent performance with standard maintenance practices.
